LAUNCH X431 CRT5011E TPMS Activation Diagnostic tools Reset Relearn reprogram 315 MHz 433 MHz tire pressure sensors OBD2 Scanner
LAUNCH X431 CRT5011E TPMS Activation Diagnostic tools Reset Relearn reprogram 315 MHz 433 MHz tire pressure sensors OBD2 Scanner
Free shipping in US
8% discount on orders of 2 or more items!Guaranteed Safe Checkout

Couldn't load pickup availability
SPECIFICATIONS
Brand Name: LAUNCH
Origin: Mainland China
Certification: CE
Item name: LAUNCH CRT5011E
Item type: TPMS Activation and Diagnostic Tool
Support Sensor: 15 MHz/ 433 MHz tire pressure sensors
Function 1: TPMS sensor activation
Function 2: TPMS sensor reading
Function 3: TPMS sensor learning
Function 4: TPMS sensor programming
Function 5: OBD II / EOBD functions included
Update: Free Update Online
LAUNCH CRT5011E 2022 Newest TPMS Relearn Tool + OBD2 Scanner Code Reader,TPMS Sensor (315+433MHz) Read/Activate/Programming/Relearn/Reset,Key Fob Test,Lifetime Free Update,Tire Pressure Sensor Program
Why we need LAUNCH CRT5011E Tire Pressure Diagnostic Tool ?
Support 10 Languages
English, French, Russian, German, Italian, Japanese, Korean, Spanish, Portuguese, Chinese. You can configure the system language of the tool to your preference language.
The Key Reason to Choose LAUNCH CRT5011E
• Activate and match with all 315 MHz / 433 MHz tire pressure sensors
• Reset, relearn and reprogram tire pressure sensors fast
• Diagnose the tire pressure issues and turn off the warning light by relearning and programming your new tire pressure sensor.
• Reprogramming LAUNCH LTR01 sensors AND other Unencrypted sensors with unlimited times
• Read tire pressure, tire temperature and battery status accurately
• Reprogram up to 8 sensors at one time
• Provide TPMS relearning procedures and sensor OE number lookup
• Multiple ID generation methods: Automatic creation/Manual creation/Copy ID by Activation/Copy by OBD/Creat Multi-sensor (1-8)
Full OBD diagnosis: Read dynamic data streams and MIL/Read readiness status/Freeze frame data/Read DTCs/Clear DTCs/O2 sensor test/On-board monitor test/Read vehicle information, etc.
Note: For indirect TPMS vehicle, only the Relearning function is supported.For vehicle using Direct TPMS, it generally includes: Activation, Programming and Relearning. The available TPMS functions may vary for different vehicles being serviced.

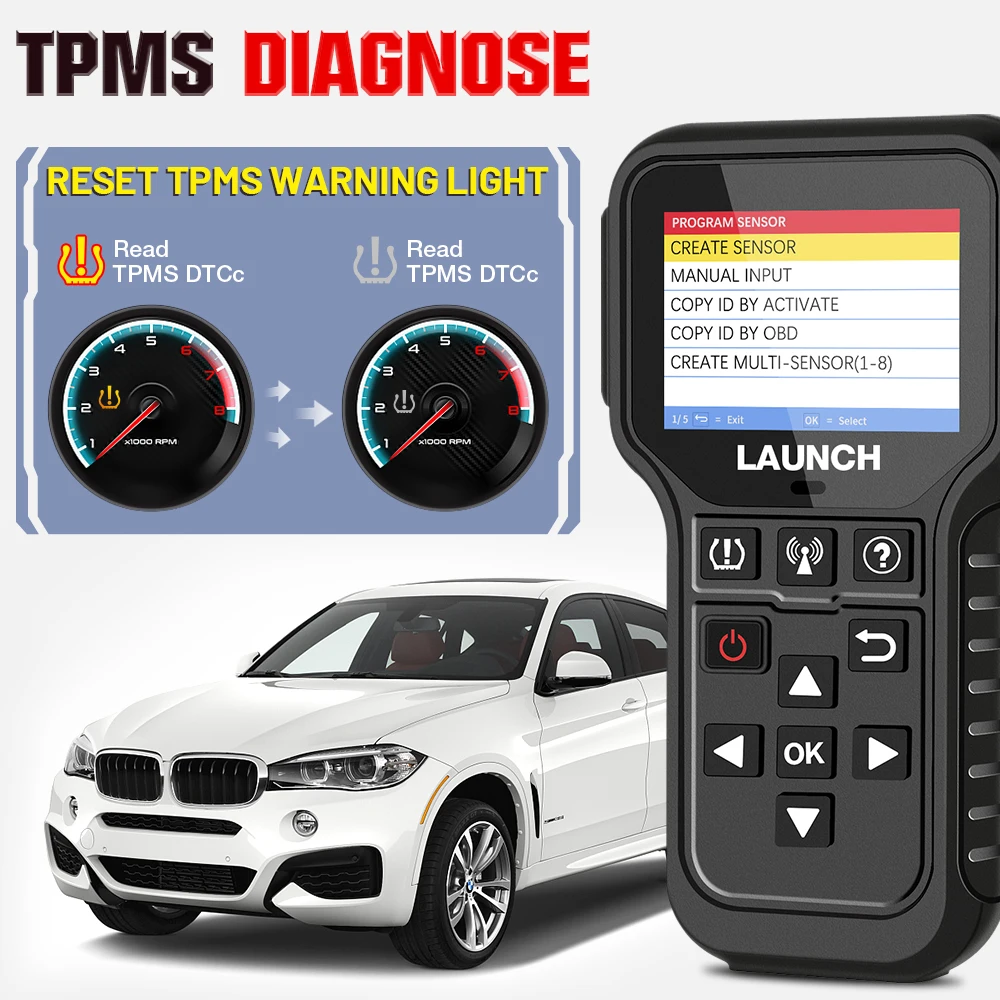

5 Modes to Program Launch RF-Sensors and Other Unencrypted Sensors
The Launch CRT5011E TPMS sensor programmer tool can program all Launch LTR01 sensors and Other Unencrypted Sensors, including 315MHz and 433MHz, to replace damaged sensors.
CRT5011E has 5 modes to program Launch RF-Sensors and Other Unencrypted Sensors:
Auto Create: This function is designed to program the LAUNCH-sensor by applying random IDs created according to the test vehicle when it is unable to obtain the original sensor ID. Select the wheel which needs to be programmed on the tool, place a LAUNCH-sensor close to the TPMS antenna of the tool, and select CREATE SENSOR to create a new random sensor ID.
Manual Create: This function allows users to manually enter sensor ID. Users can enter the random ID or the original sensor ID, if it is available.
Copy ID by activation: It can get tire pressure sensor ID when the tire sensor is working normally, you can write in the retrieved original sensor data to the LAUNCH-sensor. It is used after the original sensor is triggered.
Copy by OBD: Firstly, you need to perform a Read ID from Vehicle in the Relearn function, which reads the sensor ID from the vehicle ECU. It can be used if the sensor is damaged and the original ID is saved in the vehicle system. You can use it to get the old sensor ID stored in ECU, and write it directly into your LAUNCH RF-sensor.
Creat Multi-sensor 1-8: This function allows users to program multiple sensors simultaneously. Up to 8 sensors can be programmed at the same time.
Launch CRT5011E TPMS Tool can activate 315/433 MHz Sensors
Launch CRT5011E TPMS Diagnostic Tool allows users to activate TPMS sensor to view sensor data such as sensor ID, tire pressure, tire frequency, tire temperature, battery condition(voltage).
TPMS Relearn
• Stationary Relearn: Require the vehicle to be placed in the “Learn Mode”, follow the screen instruction to activate sensors, and perform stationary relearn.
• OBDII Relearn: Allow the CRT5011E to directly write TPMS sensor IDs to the TPMS module via the OBD connector.
• Auto Relearn: You can complete relearning by driving and refer to the on-screen Relearn Procedure for the exact details of the process.
Due to different car models, OBDII Relearn, Stationary Relearn, and Auto Relearn may not exist at the same time. Some models have all 3 relearn methods, but some models may only have one or two relearn methods.
TPMS Diagnosis
Full OBDII 10 Modes
This option presents a quick way to check for DTCs, isolate the cause of the illuminated Malfunction Indicator Lamp (MIL), check monitor status prior to emissions certification testing, verify repairs, and perform a number of other services that are emission-related.
Main Function:
1.Read/Clear DTCs, 2.I/M Readiness Check, 3.Freeze Frame Data Viewing, 4.O2 Sensor Test, 5.On-board Monitor Test, 6.EVAP System Test, 7.Live Data Stream Viewing, 8.Vehicle Information, 9.Componet test.
Attention >>>>>>>
1. LAUNCH CRT5011E TPMS Relearn Tool is specially designed to diagnose electronic control systems of 12V vehicles. Please note that it is NOT suitable for a six-wheeled dual-rear car.
2. For early magnet-activated sensors, place the magnet over the stem and then place the tool alongside the valve stem.
3. If the TPMS sensor requires tire deflation (of the order of 10PSI), then deflate the tire and place the tool alongside the stem while pressing the button.
!!! If you want to activate/check/read the tire pressure sensor, please point the CRT5011E TPMS Tool within 30cm of the sensor.
!!! To activate/check/read the tire pressure sensor, please ensure that you have selected the correct car model, year and frequency of tpms sensor.
!!! If you cannot activate/check/read the tire pressure sensor, please try other car years and frequencies.
!!! If you still can't activate/check/read the tire pressure sensor, please try deflating the tires while activating it(Some models require).
!!! If it still fails to activate/check/read the sensor, PLEASE FEEDBACK Your Car Model, Year and Sensor OEM Part Number to Us.
Packing List
